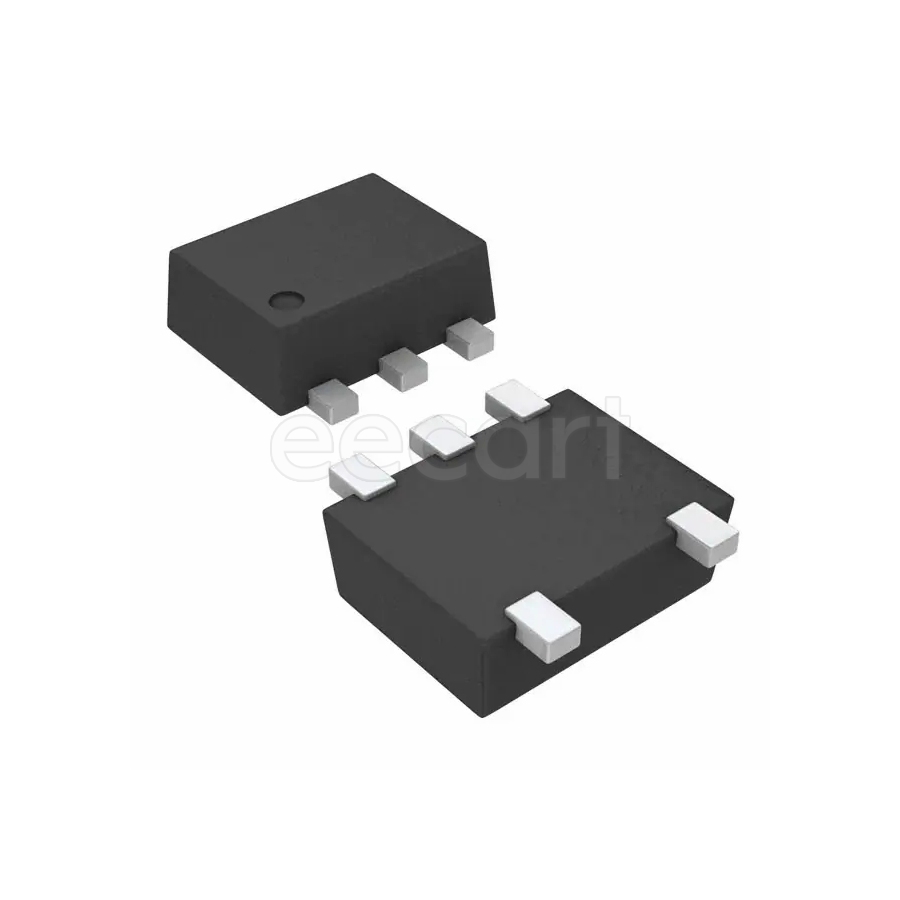

LT6202CS5#TRMPBF
Manufacturer:
Analog Devices
Mfr.Part #:
LT6202CS5#TRMPBF
Datasheet:
Description:
Amplifiers - Op Amps, Buffer, Instrumentation SOT-5 SMD/SMT General Purpose Amplifiers Number of Circuits:1
| Parameter | Value |
|---|---|
| Number of Elements | 1 |
| Number of Circuits | 1 |
| Lead Free | Lead Free |
| Max Supply Voltage | 12.6 V |
| Input Offset Voltage (Vos) | 500 µV |
| Slew Rate | 25 V/µs |
| Number of Channels | 1 |
| Gain Bandwidth Product | 90 MHz |
| Lifecycle Status | Production (Last Updated: 2 months ago) |
| Min Operating Temperature | 0 °C |
| Min Supply Voltage | 2.5 V |
| Schedule B | 8542330000 |
| Nominal Gain Bandwidth Product | 100 MHz |
| Max Dual Supply Voltage | 6.3 V |
| Power Supply Rejection Ratio (PSRR) | 60 dB |
| Bandwidth | 100 MHz |
| Operating Supply Current | 2.8 mA |
| Input Bias Current | 3.8 µA |
| Min Dual Supply Voltage | 1.25 V |
| Max Operating Temperature | 70 °C |
| Number of Pins | 5 |
| Voltage Gain | 96.9 dB |
| Case/Package | SOT-23-5 |
| Output Current per Channel | 40 mA |
| Operating Supply Voltage | 2.5 V to 12.6 V |
| Amplifier Type | General Purpose Amplifiers |
| Output Current | 40 mA |
| Output Type | Rail-to-Rail |
| Common Mode Rejection Ratio (CMRR) | 85 dB |
| RoHS | Compliant |
| Packaging | Reel |
